The command line and the FITS output

Everything simulate_field does is also available from the shell as wcc-sim. This notebook runs the CLI on a real Gaia pointing (cached in gaia_cache/, so it works offline) and dissects the multi-extension FITS file it writes.

Requirements: the py313 conda env kernel (wcc_etc + astroquery).

[1]:

import numpy as np
import matplotlib.pyplot as plt

import wcc_etc
import wcc_sim

plt.style.use('gks')
TEAL, RED, AMBER = '#00798c', '#d1495b', '#edae49'

print(f'wcc_sim {wcc_sim.__version__} | wcc_etc {wcc_etc.__version__}')

import subprocess
import sys

def run(args):
    r = subprocess.run([sys.executable, '-m', 'wcc_sim.cli'] + args,
                       capture_output=True, text=True)
    print(r.stdout or r.stderr)
    assert r.returncode == 0, r.stderr
    return r

wcc_sim 0.1.0 | wcc_etc 0.6.0

1. wcc-sim --help

[2]:

run(['--help']);

usage: wcc-sim [-h] --ra RA --dec DEC [--sensorfilter SENSORFILTER]
               [--focus {0,1,2}] [--exptime EXPTIME] [--n-reads N_READS]
               [--pa PA] [--jitter JITTER_SIGMA_MAS] [--mag-limit MAG_LIMIT]
               [--no-noise] [--no-clean] [--seed SEED] [--shape NY NX]
               [--stamp-npix STAMP_NPIX] [--cache-dir CACHE_DIR] -o OUTPUT

Simulate a WCC detector image of the Gaia field at (RA, Dec).

options:
  -h, --help            show this help message and exit
  --ra RA               pointing RA [deg, ICRS]
  --dec DEC             pointing Dec [deg, ICRS]
  --sensorfilter SENSORFILTER
                        wcc_etc sensorfilter, e.g. zwo:r, zwo:r+1, qcmos:bb
  --focus {0,1,2}       waves of defocus (default: sensorfilter's focus level)
  --exptime EXPTIME     total exposure [s]
  --n-reads N_READS     coadded frames
  --pa PA               position angle [deg E of N]
  --jitter JITTER_SIGMA_MAS
                        jitter sigma [mas]
  --mag-limit MAG_LIMIT
                        Gaia G faint limit
  --no-noise            skip noise realization
  --no-clean            omit CLEAN extension
  --seed SEED           RNG seed
  --shape NY NX         subarray shape (default: full array)
  --stamp-npix STAMP_NPIX
                        PSF stamp size [detector px, odd]
  --cache-dir CACHE_DIR
                        Gaia query cache directory
  -o, --output OUTPUT   output FITS path

2. Simulate a field from the shell

A 600×600 px cutout of a Kepler-field pointing at +1 wave defocus. --cache-dir gaia_cache reuses the cone search shipped with the repository, so no network is needed; --seed pins the noise realization.

[3]:

run(['--ra', '291.017019', '--dec', '44.495843',
     '--sensorfilter', 'zwo:r', '--focus', '1',
     '--exptime', '90', '--seed', '42',
     '--shape', '600', '600', '--cache-dir', 'gaia_cache',
     '-o', 'cli_field_1wave.fits']);

Wrote cli_field_1wave.fits: 600x600 px, 7 sources, focus=1w, 0 saturated px

3. What is in the file

Four extensions: the ADU image (SCI, with WCS + provenance header), the per-pixel saturation mask (SATMASK), the injected catalog (CAT), and the noiseless expectation image (CLEAN, omit with --no-clean).

[4]:

from astropy.io import fits

hdul = fits.open('cli_field_1wave.fits')
hdul.info()

Filename: cli_field_1wave.fits
No.    Name      Ver    Type      Cards   Dimensions   Format
  0  SCI           1 PrimaryHDU      46   (600, 600)   float32
  1  SATMASK       1 ImageHDU         8   (600, 600)   uint8
  2  CAT           1 BinTableHDU     38   7R x 12C   [K, D, D, E, E, E, D, D, 3A, D, L, L]
  3  CLEAN         1 ImageHDU         9   (600, 600)   float32

[5]:

hdr = hdul['SCI'].header
for card in ['RA_PNT', 'DEC_PNT', 'SENSORF', 'FOCUS', 'EXPTIME', 'NREADS',
             'JITTER', 'MAGLIM', 'SEED', 'NSRC', 'PLTSCL', 'GAIN', 'RDNOISE',
             'DARK', 'SKYRATE', 'WELLDEP', 'WCCSIMV', 'WCCETCV', 'BUNIT']:
    print(f'{card:8s} = {hdr[card]!r:>24}   / {hdr.comments[card]}')

RA_PNT   =               291.017019   / [deg] pointing RA (ICRS), array center
DEC_PNT  =                44.495843   / [deg] pointing Dec (ICRS), array center
SENSORF  =                  'zwo:r'   / wcc_etc sensorfilter (kind:band)
FOCUS    =                        1   / [waves] defocus (0=in-focus)
EXPTIME  =                     90.0   / [s] total exposure time
NREADS   =                        1   / coadded frames (ETC semantics)
JITTER   =                     10.0   / [mas] jitter Gaussian sigma
MAGLIM   =                     21.0   / Gaia G faint limit of injected sources
SEED     =                       42   / RNG seed (empty if None)
NSRC     =                        7   / number of injected sources
PLTSCL   =       16.869089722675366   / [mas/pix] plate scale
GAIN     =        0.261200000004368   / [e-/ADU] sensor gain
RDNOISE  =       3.0442890448219115   / [e-] read noise per frame
DARK     =     0.003070336749998594   / [e-/s/pix] dark current
SKYRATE  =     0.013643288040258746   / [e-/s/pix] sky background rate
WELLDEP  =       16274.929434794496   / [e-] full well (empty if None)
WCCSIMV  =                  '0.1.0'   / wcc_sim version
WCCETCV  =                  '0.6.0'   / wcc_etc version
BUNIT    =                    'adu'   / SCI pixel units

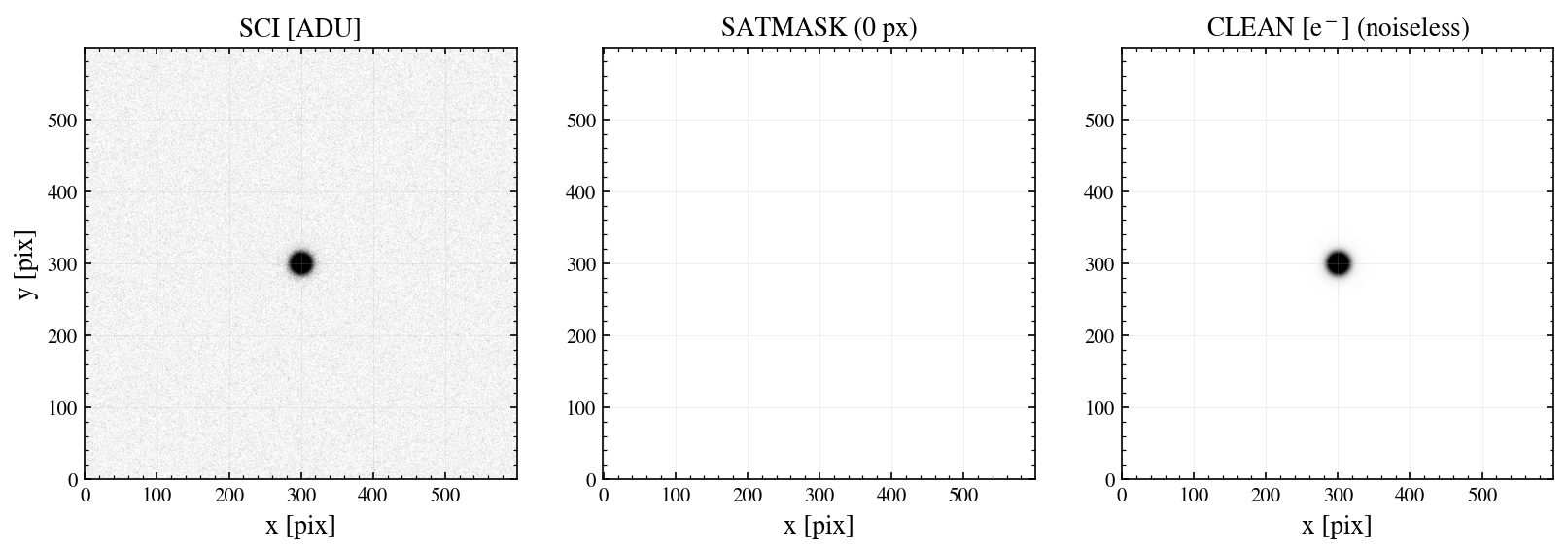

[6]:

from astropy.visualization import simple_norm

sci = hdul['SCI'].data
sat = hdul['SATMASK'].data.astype(bool)
clean = hdul['CLEAN'].data

fig, axes = plt.subplots(1, 3, figsize=(13, 4.6))
axes[0].imshow(sci, origin='lower', cmap='gray_r',
               norm=simple_norm(sci, 'asinh', percent=99.7))
axes[0].set_title(f'SCI [ADU]')
axes[1].imshow(sat, origin='lower', cmap='gray_r', interpolation='none')
axes[1].set_title(f'SATMASK ({sat.sum()} px)')
axes[2].imshow(clean, origin='lower', cmap='gray_r',
               norm=simple_norm(clean, 'asinh', percent=99.7))
axes[2].set_title('CLEAN [e$^-$] (noiseless)')
for ax in axes:
    ax.set_xlabel('x [pix]')
axes[0].set_ylabel('y [pix]')
plt.show()
../_images/notebooks_06_cli_and_fits_9_0.png

4. The catalog extension

CAT carries every injected Gaia source with its pixel position, assigned spectral type, count rate, and flags — everything needed to evaluate photometry or train on the image.

[7]:

from astropy.table import Table

cat = Table.read(hdul['CAT'])
cat.sort('phot_g_mean_mag')
print(f'{len(cat)} sources | {np.asarray(cat["in_image"], bool).sum()} in frame | '
      f'{np.asarray(cat["saturated"], bool).sum()} flagged saturated')
cat[:8]

7 sources | 1 in frame | 0 flagged saturated

[7]:
Table length=7
source_idradecphot_g_mean_magphot_bp_mean_magphot_rp_mean_magxysptrate_e_sin_imagesaturated
degdegmagmagmag
int64float64float64float32float32float32float64float64str3float64boolbool
2126245691858425728291.021104355974244.496974687887916.74246617.18857216.14136-322.37821688720305541.0268749834006K2V7955.616417257058FalseFalse
2126245687559826048291.0232719751101644.4972968845211818.23764218.73714817.609856-652.330771323393609.8071028426876K2V2007.2585162224102FalseFalse
2126245588779207936291.017018910679544.49584262655583418.26265518.62882417.74546299.51359674851705299.4203039963873G5V1914.1767541894128TrueFalse
2126245794937637632291.0140866350787444.497880109504718.88647819.29997618.357029745.8614834546491734.2436280732969G8V1088.153271381706FalseFalse
2126245790639029504291.010430059101844.4951229671773619.57688919.92674619.0430581302.5090313339151145.87959946750735G5V570.5431898419027FalseFalse
2126245584480594432291.0176580464845444.49379112506224519.90059521.20651618.84191202.21819950324004-138.3863048764921M2V317.40402190531125FalseFalse
2126245584477751168291.021814194337944.4925402927442620.2204221.37311219.00277-430.4862472893402-405.3029976034127M2V236.41878172548758FalseFalse

5. Astrometric closure through the file

The WCS in the SCI header must map the catalog’s (ra, dec) back onto its stored pixel positions — a full round-trip through the FITS file.

[8]:

from astropy.wcs import WCS

wcs = WCS(hdr)
x, y = wcs.world_to_pixel_values(np.asarray(cat['ra'], float),
                                 np.asarray(cat['dec'], float))
err = np.hypot(x - cat['x'], y - cat['y']).max()
print(f'max |WCS(ra,dec) - (x,y)| = {err:.2e} px')
assert err < 1e-3
hdul.close()

max |WCS(ra,dec) - (x,y)| = 2.81e-12 px

Summary

  • wcc-sim exposes the whole pipeline from the shell; --cache-dir makes reruns offline and --seed makes them reproducible.

  • The FITS file is self-describing: WCS + full provenance in the SCI header, per-pixel SATMASK, the injected CAT, and a noiseless CLEAN image.

  • See the CLI page of the documentation for the full option table and a cookbook, and scripts/ for ready-to-run examples.
