2. Atmosphere scenarios
Every showcase target offers five scenarios. They are presets of the parametric model (lazuli_exo.presets), evaluated at the planet’s registry values, so a scenario is a handful of atmosphere parameters rather than a separate table.
Scenario |
Parameters |
What it represents |
|---|---|---|
|
solar metallicity, no deck, no haze |
Full-amplitude molecular features, the optimistic case |
|
gray deck at 1 mbar |
An opaque deck truncating the features from below |
|
haze 100x H2 Rayleigh at 0.35 µm, slope −6 |
A scattering haze steepening the blue continuum |
|
100x solar |
Higher mean molecular weight, so a smaller scale height |
|
gray deck at 10 nbar |
A featureless (Rp/Rs)2 line |
All five use C/O = 0.55, the equilibrium-chemistry mean molecular weight and a single isothermal T = Teq layer.
[1]:
import numpy as np
import matplotlib.pyplot as plt
try:
plt.style.use("gks")
except OSError:
pass
import lazuli_exo
print("lazuli_exo", lazuli_exo.__version__ if hasattr(lazuli_exo, "__version__") else "(dev)")
lazuli_exo (dev)
The recorded settings
The presets are code, and the parameters end up in obs.meta["params"], so you can read back exactly what was run rather than trusting the table above.
[2]:
from lazuli_exo import presets
PLANET = "WASP-39 b"
keys = ("log_met", "c_to_o", "mu", "log_P_cloud_bar", "log_a_haze", "haze_slope")
print(f"{'scenario':18s}" + "".join(f"{k:>16s}" for k in keys))
for s in lazuli_exo.list_scenarios(PLANET):
p = lazuli_exo.observe(PLANET, scenario=s).meta["params"]
assert {k: p[k] for k in keys} == {**presets.SCENARIO_PARAMS[s], "mu": None}
print(f"{s:18s}" + "".join(f"{str(p[k]):>16s}" for k in keys))
scenario log_met c_to_o mu log_P_cloud_bar log_a_haze haze_slope
clear 0.0 0.55 None None None -4.0
cloudy 0.0 0.55 None -3.0 None -4.0
flat 0.0 0.55 None -8.0 None -4.0
hazy 0.0 0.55 None None 2.0 -6.0
high_metallicity 2.0 0.55 None None None -4.0
The four physical scenarios side by side

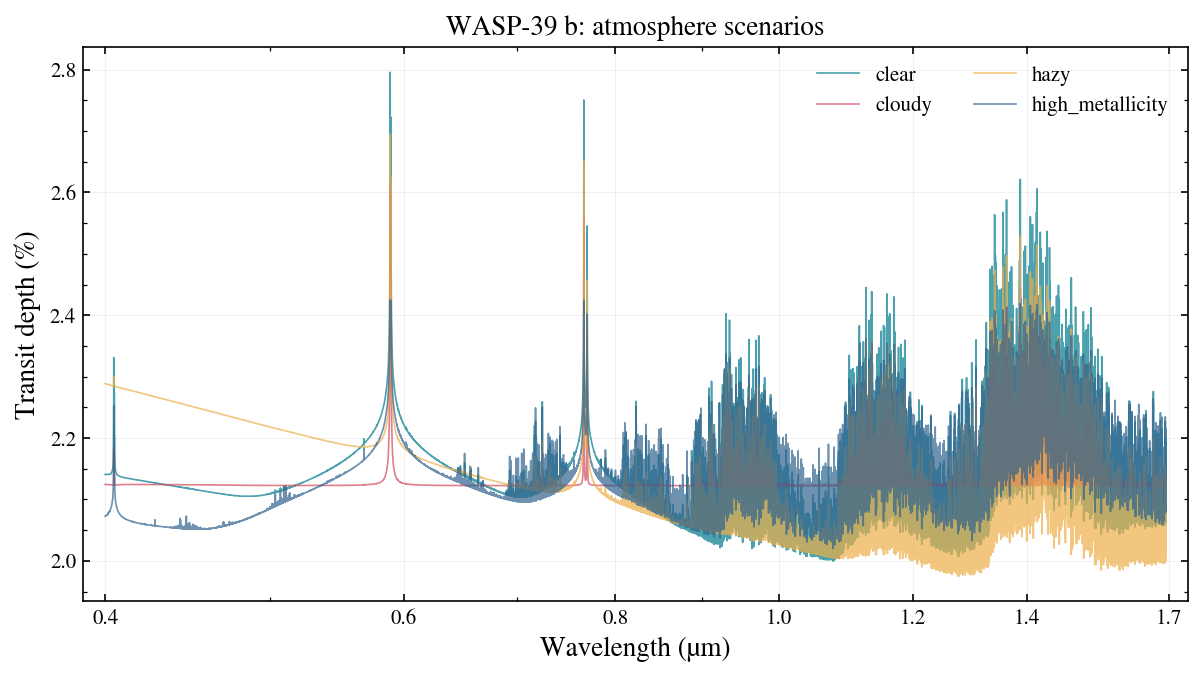

obs.plot(ax=ax, show_points=False) draws only the native-resolution model, so several scenarios overlay on one Axes. clear has the deepest molecular bands; the deck in cloudy clips them from below; hazy adds a rising blue slope; high_metallicity compresses everything because the mean molecular weight, and with it the scale height, has changed.
One convention to keep in mind when reading the overlay: R_p is the band-median transit radius, so every scenario is pinned to the same depth at mid-band. A haze or a deck therefore raises the blue end and lowers the red end relative to clear, instead of sitting above it everywhere.
[3]:
fig, ax = plt.subplots(figsize=(9.5, 4.8))
for s in ["clear", "cloudy", "hazy", "high_metallicity"]:
lazuli_exo.observe(PLANET, scenario=s, R=100).plot(ax=ax, show_points=False)
ax.set_title(f"{PLANET}: atmosphere scenarios")
ax.legend(frameon=False, ncol=2)
plt.show()
The flat baseline
flat puts the deck above every line core, which leaves a constant (Rp/Rs)2 line to within a ppm. It is what the template S/N is measured against, so detect() on it returns almost exactly zero.
[4]:
obs_clear = lazuli_exo.observe(PLANET, scenario="clear", n_transits=1)
obs_flat = lazuli_exo.observe(PLANET, scenario="flat", n_transits=1)
snr_clear = obs_clear.detect()["template_snr_diagonal"]
snr_flat = obs_flat.detect()["template_snr_diagonal"]
print(f"flat_depth (geometric): {obs_flat.flat_depth * 100:.4f} %")
print(f"flat model spread: {np.ptp(obs_flat.depth) * 1e6:.3g} ppm")
print()
print(f"template S/N, clear: {snr_clear:8.2f}")
print(f"template S/N, flat: {snr_flat:8.4f}")
assert snr_flat < 0.01, "the flat baseline must carry no template signal"
assert snr_clear > 50 * max(snr_flat, 1e-6)
print("\nOK: flat is featureless, clear is not.")
flat_depth (geometric): 2.1228 %
flat model spread: 0.0647 ppm
template S/N, clear: 68.65
template S/N, flat: 0.0012
OK: flat is featureless, clear is not.
Feature amplitude across scenarios and targets
The same comparison for four targets spanning the sample: a hot Saturn, a warm Neptune, a sub-Neptune and a temperate terrestrial. This is one transit each, so the absolute values depend on host brightness as much as on the atmosphere.
[5]:
TARGETS = ["WASP-39 b", "GJ 3470 b", "K2-18 b", "TRAPPIST-1 e"]
PHYSICAL = ["clear", "cloudy", "hazy", "high_metallicity"]

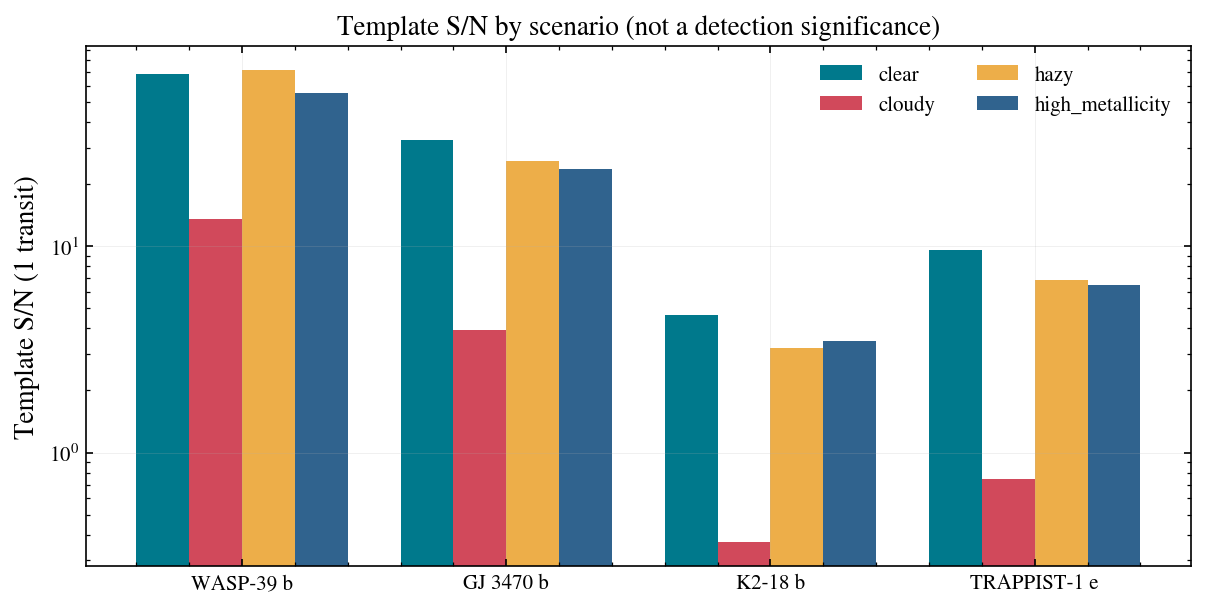

snr = {t: [lazuli_exo.observe(t, scenario=s, n_transits=1)
.detect()["template_snr_diagonal"] for s in PHYSICAL]
for t in TARGETS}
fig, ax = plt.subplots(figsize=(9.5, 4.5))
x = np.arange(len(TARGETS))
width = 0.2
for i, s in enumerate(PHYSICAL):
ax.bar(x + (i - 1.5) * width, [snr[t][i] for t in TARGETS],
width, label=s)
ax.set_xticks(x)
ax.set_xticklabels(TARGETS)
ax.set_yscale("log")
ax.set_ylabel("Template S/N (1 transit)")
ax.set_title("Template S/N by scenario (not a detection significance)")
ax.legend(frameon=False, ncol=2)
plt.show()
for t in TARGETS:
print(f"{t:14s} " + " ".join(f"{s}={v:8.2f}"
for s, v in zip(PHYSICAL, snr[t])))
WASP-39 b clear= 68.65 cloudy= 13.55 hazy= 71.74 high_metallicity= 55.19
GJ 3470 b clear= 32.65 cloudy= 3.91 hazy= 25.86 high_metallicity= 23.65
K2-18 b clear= 4.67 cloudy= 0.37 hazy= 3.22 high_metallicity= 3.48
TRAPPIST-1 e clear= 9.62 cloudy= 0.75 hazy= 6.85 high_metallicity= 6.48
Two orderings hold for every target: the deck mutes the features, and higher metallicity shrinks the scale height, so both score below clear.
hazy is the interesting one. On WASP-39 b it scores above clear, and on the cooler targets it does not. That is a good illustration of what the statistic measures. The template norm rewards any deviation from a flat line, and a haze contributes a steep Rayleigh-like slope across the blue half of the band. A smooth continuum slope is a large departure from flat even though it carries no molecular information. Read template_snr_diagonal as “how much structure is there”, never as “how
much atmosphere is detectable”.
[6]:
for t in TARGETS:
v = dict(zip(PHYSICAL, snr[t]))
assert v["clear"] > v["cloudy"], t
assert v["clear"] > v["high_metallicity"], t
print("OK: clear > cloudy and clear > high_metallicity for every target.\n")
print(f"{'planet':14s}{'clear':>10s}{'hazy':>10s}{'hazy/clear':>13s}")
for t in TARGETS:
v = dict(zip(PHYSICAL, snr[t]))
print(f"{t:14s}{v['clear']:10.2f}{v['hazy']:10.2f}"
f"{v['hazy'] / v['clear']:13.2f}")
OK: clear > cloudy and clear > high_metallicity for every target.
planet clear hazy hazy/clear
WASP-39 b 68.65 71.74 1.04
GJ 3470 b 32.65 25.86 0.79
K2-18 b 4.67 3.22 0.69
TRAPPIST-1 e 9.62 6.85 0.71
Which bands carry the signal
Splitting the same statistic by the fixed wavelength masks shows where in the band the scenarios differ. The masks overlap and every species is mixed together, so read these as “where the spectrum has structure”.
[7]:
from lazuli_exo.detect import BAND_MASKS
mols = sorted(BAND_MASKS)
print(f"{PLANET}, 1 transit, band-restricted template norms\n")
print(f"{'scenario':18s}" + "".join(f"{m:>10s}" for m in mols))
for s in PHYSICAL + ["flat"]:
bands = lazuli_exo.observe(PLANET, scenario=s,
n_transits=1).detect()["band_snr"]
print(f"{s:18s}" + "".join(f"{bands[m]:10.2f}" for m in mols))
WASP-39 b, 1 transit, band-restricted template norms
scenario CH4 CO2 H2O K Na
clear 18.80 26.00 46.62 15.20 22.66
cloudy 2.35 7.00 11.22 2.07 5.00
hazy 21.84 20.91 31.47 10.47 19.35
high_metallicity 17.08 20.85 39.64 6.83 13.74
flat 0.00 0.00 0.00 0.00 0.00
Going from clear to hazy on WASP-39 b, the H2O, Na, K and CO2 norms drop as the molecular bands are partly veiled, and yet the total goes up. The extra structure lives outside every mask, in the blue continuum below 0.575 µm where the haze slope is steepest and no band mask reaches. The cell below splits the total into the part inside any mask and the part outside all of them.
[8]:
def chi2_split(obs):
"""Template chi2 inside any band mask vs. outside all of them."""
w = 1.0 / obs.depth_err ** 2
dbar = np.sum(w * obs.depth) / np.sum(w)
chi2 = w * (obs.depth - dbar) ** 2
in_mask = np.zeros(obs.wavelength.shape, dtype=bool)
for spans in BAND_MASKS.values():
for lo, hi in spans:
in_mask |= (obs.wavelength >= lo) & (obs.wavelength <= hi)
return np.sqrt(chi2[in_mask].sum()), np.sqrt(chi2[~in_mask].sum())
print(f"{'scenario':18s}{'total S/N':>11s}{'in-mask':>10s}"
f"{'out-of-mask':>14s}{'out fraction':>14s}")
rows = {}
for s in ["clear", "hazy"]:
o = lazuli_exo.observe(PLANET, scenario=s, n_transits=1)
inside, outside = chi2_split(o)
total = o.detect()["template_snr_diagonal"]
rows[s] = (outside / total) ** 2
print(f"{s:18s}{total:11.2f}{inside:10.2f}{outside:14.2f}"
f"{rows[s]:14.2f}")
assert rows["hazy"] > rows["clear"], "the haze adds out-of-mask structure"
scenario total S/N in-mask out-of-mask out fraction
clear 68.65 56.46 39.05 0.32
hazy 71.74 43.98 56.68 0.62
The cold-planet temperature floor
The equilibrium-chemistry grid behind the model starts at 300 K. Three targets sit below it: their chemistry is evaluated at 300 K while the scale height uses the true Teq. meta["atmosphere"] records both temperatures and the flag, so you never have to guess.
[9]:
import warnings
print(f"{'planet':14s}{'T_eq (K)':>10s}{'T_chem (K)':>12s} clamped")
with warnings.catch_warnings():
# one bright host warns about residual detector saturation;
# notebook 05 covers what that means
warnings.simplefilter("ignore", UserWarning)
for p in lazuli_exo.list_planets():
m = lazuli_exo.observe(p, scenario="clear", n_transits=1).meta
a = m["atmosphere"]
flag = " <-- clamped" if a["T_clamped"] else ""
print(f"{p:14s}{m['params']['T_eq_K']:10.0f}{a['T_chem_K']:12.0f}{flag}")
planet T_eq (K) T_chem (K) clamped
GJ 1214 b 567 567
GJ 3470 b 594 594
HAT-P-11 b 838 838
HD 189733 b 1209 1209
HD 209458 b 1459 1459
K2-18 b 284 300 <-- clamped
LHS 1140 b 226 300 <-- clamped
TOI-270 d 383 383
TRAPPIST-1 e 250 300 <-- clamped
WASP-107 b 736 736
WASP-12 b 2601 2601
WASP-121 b 2409 2409
WASP-39 b 1166 1166
WASP-96 b 1285 1285
Summary
Four physical scenarios (
clear,cloudy,hazy,high_metallicity) plus a featurelessflatbaseline, all presets of one parametric model, with the parameters recorded inmeta["params"].clearmaximizes feature amplitude; a deck truncates it, high metallicity compresses it.flatcarries no template signal by construction; it is the reference the statistic is measured against.A haze can raise the template S/N through continuum slope alone, which is the clearest reminder that the statistic measures structure, not molecules.
Sub-300 K targets use 300 K chemistry and are flagged with
T_clamped.
Next: transits and binning, how n_transits and R trade against each other.
