5. Tables and targets
Everything lazuli-exo computes at runtime comes out of a small directory of .npz lookup tables plus a frozen target registry, and nothing heavier than numpy is imported. This notebook opens the tables directly, so you can see what the runtime reads and where its caveats are recorded.
index.json # schema version, planets, grids, sha256 manifest
atmo/zeta_grid.npz # parametric model: zeta(T, [M/H], C/O, fiducial, lambda), mu
star/phoenix_grid.npz # PHOENIX SEDs on (T_eff, log g, [Fe/H])
star/<planet-slug>.npz # wavelength_um, f_lambda, meta (R = 10 000 host SED)
noise/<planet-slug>.npz # wavelength_um, depth_err_1transit, meta
ld/<planet-slug>.npz # wavelength_um, u1, u2, meta
Scenarios are not files: they are presets of the parametric model. The per-planet POSEIDON spectra the model is validated against live under precompute/tables/ and are not shipped.
[1]:
import numpy as np
import matplotlib.pyplot as plt
try:
plt.style.use("gks")
except OSError:
pass
import lazuli_exo
print("lazuli_exo", lazuli_exo.__version__ if hasattr(lazuli_exo, "__version__") else "(dev)")
lazuli_exo (dev)
Locating the tables
resolve_tables_dir() looks in three places, in order: an explicit tables_dir= argument, then the LAZULI_EXO_TABLES environment variable, then the data/tables/ shipped inside the package.
[2]:
from pathlib import Path
from lazuli_exo import tables
tdir = tables.resolve_tables_dir(None)
PKG = Path(lazuli_exo.__file__).parent
print(f"tables dir: <package>/{tdir.relative_to(PKG)}\n")
for sub in ["atmo", "star", "noise", "ld"]:
files = sorted((tdir / sub).glob("*.npz"))
mb = sum(f.stat().st_size for f in files) / 1e6
print(f" {sub:8s} {len(files):3d} files {mb:6.2f} MB")
total = sum(f.stat().st_size for f in tdir.rglob("*")
if f.is_file()) / 1e6
print(f"\n {'total':8s} {total:16.2f} MB")
tables dir: <package>/data/tables
atmo 1 files 25.26 MB
star 15 files 5.62 MB
noise 14 files 0.14 MB
ld 14 files 0.03 MB
total 31.06 MB
The index
index.json is the catalogue. It carries a schema version, and load_index() refuses a mismatch rather than silently misreading tables. Since schema 4 it also holds a sha256 manifest of every file, so a table that was edited or truncated after generation can be caught.
[3]:
index = tables.load_index(tdir)
print(f"schema version: {index['version']} "
f"(supported: {tables.SCHEMA_VERSION})")
print(f"planets: {len(index['planets'])}")
print(f"grids: {index['atmo']}")
print(f"manifest: {len(index['files'])} files\n")
print("index['planets']['WASP-39 b']:", index["planets"]["WASP-39 b"])
rel = "noise/wasp-39-b.npz"
print(f"\n{rel}: manifest {index['files'][rel][:16]}..., "
f"on disk {tables.sha256_file(tdir / rel)[:16]}...")
assert tables.sha256_file(tdir / rel) == index["files"][rel]
schema version: 4 (supported: 4)
planets: 14
grids: {'zeta_grid': True}
manifest: 44 files
index['planets']['WASP-39 b']: {'has_ld': True, 'has_noise': True, 'slug': 'wasp-39-b'}
noise/wasp-39-b.npz: manifest baf4e4a67de0a11d..., on disk baf4e4a67de0a11d...
The index is regenerated from what is on disk by tables.rebuild_index(), which every precompute script calls when it finishes, so the catalogue cannot drift from the files.
[4]:
missing = [rel for rel in index["files"] if not (tdir / rel).exists()]
print(f"indexed files missing from disk: {missing or 'none'}")
assert not missing
bad = [rel for rel in index["files"]
if tables.sha256_file(tdir / rel) != index["files"][rel]]
print(f"files whose hash differs from the manifest: {bad or 'none'}")
assert not bad
indexed files missing from disk: none
files whose hash differs from the manifest: none
What each table holds
Each per-planet loader returns its arrays plus the meta dict that records how the table was produced; the grid loaders return a dict. The model itself is not a table any more: observe() evaluates the parametric model on the ζ grid’s wavelengths.
[5]:
PLANET = "WASP-39 b"
obs_m = lazuli_exo.observe(PLANET, scenario="clear", tables_dir=tdir)
wl_m, depth_m = obs_m.model_wavelength, obs_m.model_depth
wl_s, flam_s, meta_s = tables.load_star(tdir, PLANET)
wl_n, err_n, meta_n = tables.load_noise(tdir, PLANET)
wl_l, u1_l, u2_l, meta_l = tables.load_ld(tdir, PLANET)
zeta = tables.load_zeta_grid(tdir)
phoenix = tables.load_phoenix_grid(tdir)
print(f"{'array':8s}{'samples':>9s}{'wavelength range (um)':>26s}")
for lab, w in [("model", wl_m), ("star", wl_s),
("noise", wl_n), ("ld", wl_l)]:
print(f"{lab:8s}{w.size:9d}{w.min():14.4f} - {w.max():.4f}")
print(f"\nzeta grid: zeta{zeta['zeta'].shape} on T x [M/H] x C/O x fiducial x lambda, "
f"{zeta['wavelength_um'].size} wavelengths")
print(f"PHOENIX: log_flam{phoenix['log_flam'].shape} on T_eff x log g x [Fe/H] x lambda, "
f"T_eff {phoenix['teff_K'].min():.0f}-{phoenix['teff_K'].max():.0f} K")
array samples wavelength range (um)
model 14430 0.3998 - 1.6925
star 16650 0.3500 - 1.8500
noise 525 0.4000 - 1.6993
ld 48 0.4061 - 1.6746
zeta grid: zeta(16, 9, 4, 2, 16650) on T x [M/H] x C/O x fiducial x lambda, 16650 wavelengths
PHOENIX: log_flam(76, 5, 1, 2121) on T_eff x log g x [Fe/H] x lambda, T_eff 2000-12000 K
The ζ grid spans 0.35 to 1.85 µm at R = 10 000 (margin around the 0.40 to 1.70 µm IFS bandpass); obs.model_wavelength is the slice of it inside the binned range, which is why the model row above starts at 0.40 µm. The noise table is sampled at the instrument’s own channel spacing. That difference is why observe() puts the model through the instrument response onto the channels rather than interpolating one grid onto the other.
[6]:

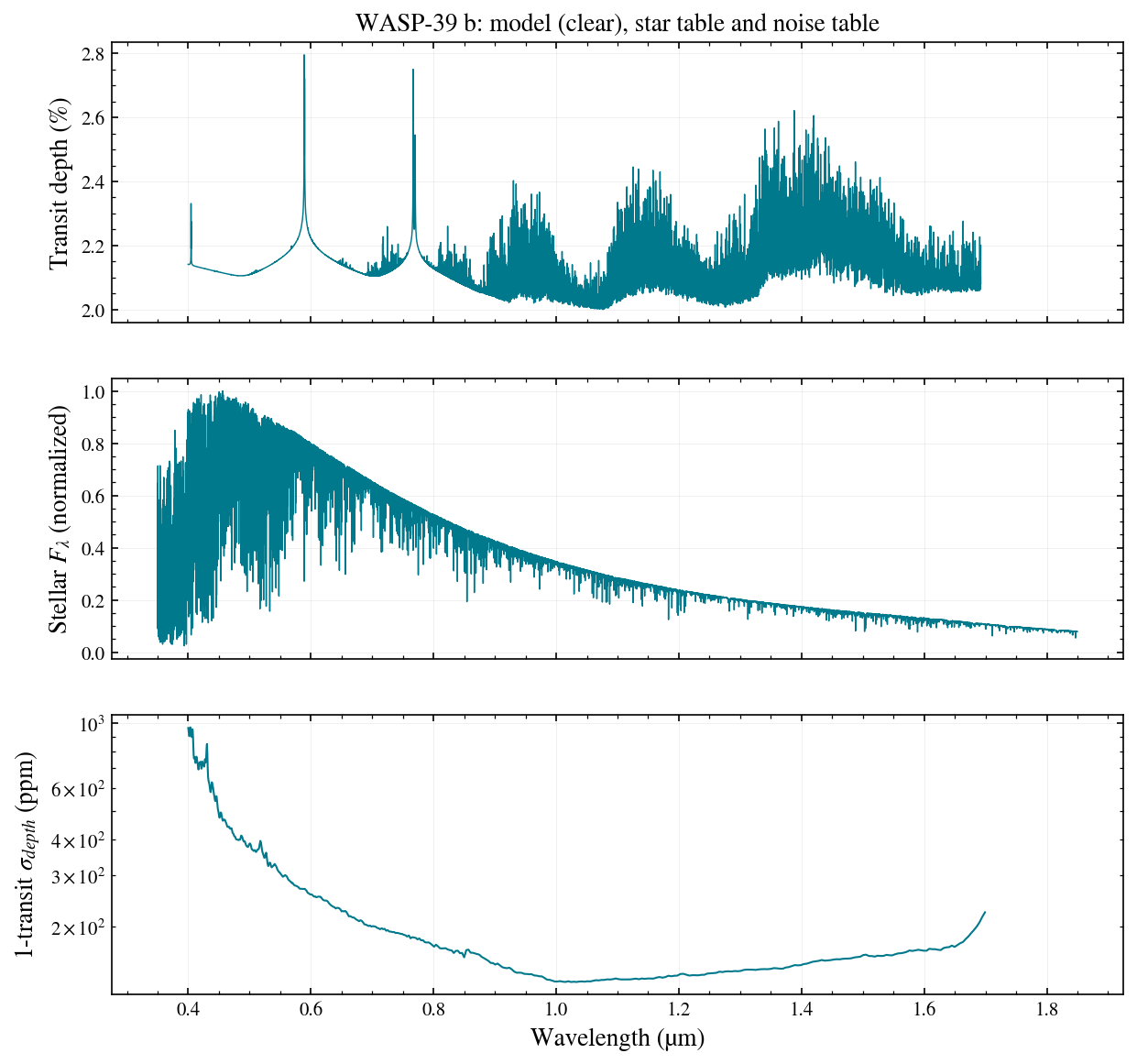

fig, axes = plt.subplots(3, 1, figsize=(9.5, 9), sharex=True)
axes[0].plot(wl_m, depth_m * 100.0, lw=0.7)
axes[0].set_ylabel("Transit depth (%)")
axes[0].set_title(f"{PLANET}: model (clear), star table and noise table")
axes[1].plot(wl_s, flam_s / flam_s.max(), lw=0.7)
axes[1].set_ylabel("Stellar $F_\\lambda$ (normalized)")
axes[2].plot(wl_n, err_n * 1e6, lw=1.0)
axes[2].set_ylabel("1-transit $\\sigma_{depth}$ (ppm)")
axes[2].set_yscale("log")
axes[2].set_xlabel("Wavelength (µm)")
plt.show()
print(f"star grid: {meta_s['stellar_grid']}, "
f"T_eff = {meta_s['T_eff_K']} K, units = {meta_s['units']}")
star grid: phoenix, T_eff = 5485.0 K, units = POSEIDON F_star (W/m^2/m)
What the noise table records
The noise meta is the provenance of every error bar: the instrument, the normalization band and the Vega to AB conversion, the readout actually used, the assumption the depth uncertainty rests on, and the package version, git commit and input hashes the table was generated from.
[7]:
for k, v in meta_n.items():
print(f" {k:28s} {v}")
generator make_noise_tables.py
created 2026-10-11
J_mag 10.663
norm_band 2massj
stellar_grid phoenix_grid.npz solar [Fe/H]
star {'fallback': None, 'clamped': {'feh': [0.01, 0.0]}, 'teff_K': 5485.0, 'teff_used': 5485.0, 'logg_used': 4.453, 'feh_used': 0.0, 'grid': 'phoenix'}
slicersim_version 1.3.4
instrument lazuli_cbe
t_int_s 45.28
default_nmd [16, 8, 0]
nmd_used [2, 8, 0]
nramps 1
readout_mode auto
tframe_s 2.83
spectrograph_mode narrow
guiding_sigma None
zodi_ab_mag None
nsaturated_detpx 0
fully_desaturated True
nsaturated_detpx_slicersim 0
band J
sncosmo_band 2massj
mag_input 10.663
mag_system vega
vega_ab_offset 0.8993018775290533
mag_ab 11.562301877529054
t14_s 10091.52
t_obs_s 48.11
nframes 16
n_reset_frames 1
trimmed_channels 0
assumption equal out-of-transit baseline; SNR ~ sqrt(t); readout tuned to remove point-source saturation
package_version 0.1.1
git_commit 7d0f71b1f0a36437226d6d26346c74f6baa8dc1f
instrument_config lazuli_cbe.toml
instrument_config_sha256 0255b694d9756e30031719aa0635b20c96c37015cd4bacd1a436b19ca9016f28
phoenix_grid_sha256 8d70ff2d232938b4dbf9b35815032e9cb504905a9ae2fd4949c9f49cf33cbaba
planet WASP-39 b

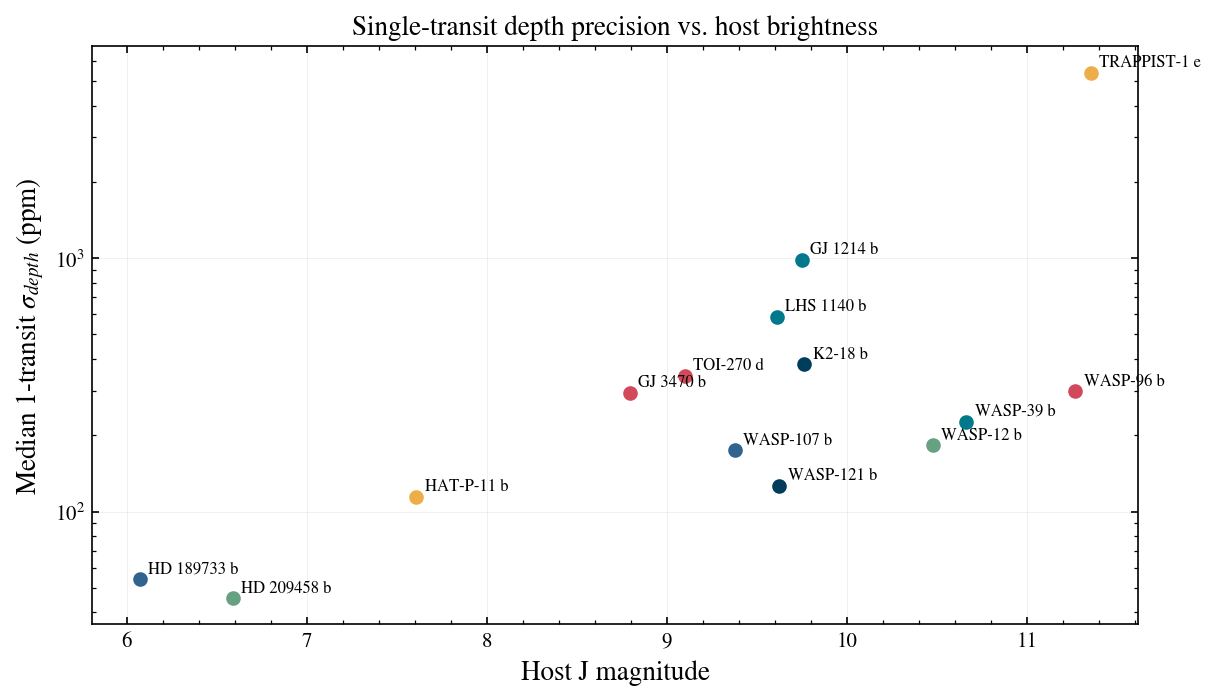

Noise vs. host brightness
Single-transit depth precision is driven mostly by how bright the host is. Plotting the median against the registry’s J magnitude shows the photon-limited trend, with the sub-Neptune and terrestrial hosts at the faint end.
[8]:
from lazuli_exo.targets import get_target
rows = []
for p in lazuli_exo.list_planets():
_, e, _ = tables.load_noise(tdir, p)
rows.append((p, get_target(p)["J_mag"], np.median(e)))
fig, ax = plt.subplots(figsize=(9, 5))
for p, j, e in rows:
ax.plot(j, e * 1e6, "o", ms=6)
ax.annotate(p, (j, e * 1e6), fontsize=8,
xytext=(4, 3), textcoords="offset points")
ax.set_yscale("log")
ax.set_xlabel("Host J magnitude")
ax.set_ylabel("Median 1-transit $\\sigma_{depth}$ (ppm)")
ax.set_title("Single-transit depth precision vs. host brightness")
plt.show()
The target registry
lazuli_exo.targets is a frozen snapshot of the NASA Exoplanet Archive PSCompPars table (plus a few overrides), generated by precompute/freeze_targets.py. It is a plain dict: no network access at runtime and no dependency on the archive being up.
[9]:
fields = ["T_eq_K", "R_p_RJ", "R_s_RSun", "T_eff_K", "J_mag",
"period_d", "a_over_rs", "inc_deg", "depth"]
print(f"{'planet':14s}" + "".join(f"{f:>11s}" for f in fields))
for p in lazuli_exo.list_planets():
t = get_target(p)
print(f"{p:14s}" + "".join(f"{t[f]:11.4g}" for f in fields))
planet T_eq_K R_p_RJ R_s_RSun T_eff_K J_mag period_d a_over_rs inc_deg depth
GJ 1214 b 567 0.2438 0.2162 3101 9.75 1.58 14.97 88.98 0.01343
GJ 3470 b 593.5 0.4068 0.547 3600 8.794 3.337 13.98 89.13 0.00584
HAT-P-11 b 838 0.3854 0.683 4653 7.608 4.888 16.72 89.03 0.003363
HD 189733 b 1209 1.134 0.75 5052 6.073 2.219 8.84 85.71 0.02413
HD 209458 b 1459 1.4 1.19 6091 6.591 3.525 8.81 86.71 0.01461
K2-18 b 284 0.215 0.411 3457 9.763 32.94 83.83 89.58 0.002889
LHS 1140 b 226 0.1553 0.2159 3096 9.612 24.74 95.34 89.86 0.005461
TOI-270 d 383 0.1816 0.38 3506 9.099 11.38 41.74 89.68 0.002411
TRAPPIST-1 e 249.7 0.08211 0.1192 2566 11.35 6.101 52.85 89.79 0.005011
WASP-107 b 736 0.9187 0.657 4425 9.378 5.721 16.5 89.55 0.02065
WASP-12 b 2601 1.924 1.69 6265 10.48 1.091 3 81.8 0.01369
WASP-121 b 2409 1.742 1.461 6628 9.625 1.275 3.784 88.49 0.01502
WASP-39 b 1166 1.331 0.939 5485 10.66 4.055 11.39 87.32 0.02123
WASP-96 b 1285 1.225 1.05 5540 11.27 3.425 9.255 85.6 0.01437
[10]:
t = get_target("K2-18 b")
print("full registry entry for K2-18 b:\n")
for k, v in sorted(t.items()):
print(f" {k:12s} {v}")
full registry entry for K2-18 b:
J_mag 9.763
M_p_MJ 0.02806532
Met_star 0.12
R_p_RJ 0.2149734603172383
R_p_archive_RJ 0.21143724
R_s_RSun 0.411
T_eff_K 3457.0
T_eq_K 284.0
T_eq_conv_K 266.9836392529934
a_over_rs 83.83
depth 0.0028890624999999997
ecc 0.2
inc_deg 89.5785
k_source pl_ratror
log_g_star 4.7864
name K2-18 b
period_d 32.939623
provenance NEA PSCompPars
slug k2-18-b
t14_s 9655.199999999999
w_deg -5.7
Unknown names fail loudly, listing what is available. observe() behaves the same way for an unknown planet or scenario.
[11]:
for call, label in [
(lambda: get_target("Kepler-999 b"), "get_target"),
(lambda: lazuli_exo.observe("Kepler-999 b", "clear", tables_dir=tdir), "observe"),
(lambda: lazuli_exo.observe("WASP-39 b", "stormy", tables_dir=tdir), "scenario"),
]:
try:
call()
except KeyError as exc:
print(f"{label:12s} KeyError: {str(exc)[:88]}...")
else:
raise AssertionError(f"{label} should have raised")
get_target KeyError: "Unknown target 'Kepler-999 b'. Available: ['GJ 1214 b', 'GJ 3470 b', 'HAT-P-11 b', 'HD ...
observe KeyError: "Unknown target 'Kepler-999 b'. Available: ['GJ 1214 b', 'GJ 3470 b', 'HAT-P-11 b', 'HD ...
scenario KeyError: "Unknown scenario 'stormy'. Available: ['clear', 'cloudy', 'flat', 'hazy', 'high_metalli...
The saturation caveat
The brightest hosts push the detector toward saturation. slicersim shortens the readout until the ramp is clean, and when even the shortest ramp (2 groups x 1 frame) leaves saturated pixels at the last read, the residual count is recorded in the noise table and observe() raises a UserWarning. With the current tables one host is affected.
For a flagged target the uncertainties are unvalidated: saturation can bias extraction weights, nonlinearity and wavelength dependence in either direction. Treat its forecasts as indicative only. Check the flag in the data rather than remembering a name; the list changes when the tables are regenerated.
[12]:
print(f"{'planet':14s}{'desaturated':>13s}{'saturated px':>14s}"
f"{'nmd used':>10s}")
flagged = []
for p in lazuli_exo.list_planets():
_, _, m = tables.load_noise(tdir, p)
ok = m.get("fully_desaturated")
if ok is False:
flagged.append(p)
print(f"{p:14s}{str(ok):>13s}{m.get('nsaturated_detpx', 0):14d}"
f"{str(m.get('nmd_used')):>10s}")
print(f"\nflagged: {flagged}")
planet desaturated saturated px nmd used
GJ 1214 b True 0 [2, 4, 0]
GJ 3470 b True 0 [2, 2, 0]
HAT-P-11 b True 0 [2, 1, 0]
HD 189733 b False 324 [2, 1, 0]
HD 209458 b True 0 [2, 1, 0]
K2-18 b True 0 [2, 4, 0]
LHS 1140 b True 0 [2, 4, 0]
TOI-270 d True 0 [2, 2, 0]
TRAPPIST-1 e True 0 [4, 8, 0]
WASP-107 b True 0 [2, 4, 0]
WASP-12 b True 0 [2, 8, 0]
WASP-121 b True 0 [2, 4, 0]
WASP-39 b True 0 [2, 8, 0]
WASP-96 b True 0 [4, 8, 0]
flagged: ['HD 189733 b']
[13]:
import warnings
with warnings.catch_warnings(record=True) as caught:
warnings.simplefilter("always")
lazuli_exo.observe(flagged[0], scenario="clear", n_transits=1)
for w in caught:
print(f"{w.category.__name__}: {w.message}")
assert caught and caught[0].category is UserWarning
UserWarning: HD 189733 b: noise table was generated with residual detector saturation (324 px); its uncertainties are unvalidated — do not use for quantitative forecasts
Pointing at a different tables directory
For a deployment that keeps the tables elsewhere, set LAZULI_EXO_TABLES or pass tables_dir= per call. Both take precedence over the packaged default, in that order.
[14]:
import os
print(f"default (package-relative): <package>/"
f"{tables.resolve_tables_dir(None).relative_to(PKG)}")
print(f"explicit argument: "
f"{tables.resolve_tables_dir('/some/other/tables')}")
os.environ["LAZULI_EXO_TABLES"] = "/from/the/environment"
print(f"from $LAZULI_EXO_TABLES: {tables.resolve_tables_dir(None)}")
del os.environ["LAZULI_EXO_TABLES"]
# an explicit argument still wins over the environment variable
os.environ["LAZULI_EXO_TABLES"] = "/from/the/environment"
print(f"argument beats env: "
f"{tables.resolve_tables_dir('/explicit/wins')}")
del os.environ["LAZULI_EXO_TABLES"]
# observe() takes the same argument
obs = lazuli_exo.observe(PLANET, scenario="clear", n_transits=1,
tables_dir=tdir)
print(f"\nobs.meta['tables_dir']: <package>/"
f"{Path(obs.meta['tables_dir']).relative_to(PKG)}")
default (package-relative): <package>/data/tables
explicit argument: /some/other/tables
from $LAZULI_EXO_TABLES: /from/the/environment
argument beats env: /explicit/wins
obs.meta['tables_dir']: <package>/data/tables
Summary
Per-planet star, noise and limb-darkening tables plus two grids (ζ and PHOENIX) under one directory, catalogued by a version-stamped
index.jsonwith a sha256 manifest thatrebuild_index()regenerates from disk.Every table carries a
metadict recording how it was produced: stellar grid, readout mode, LD grid point, package version and git commit.The registry (
lazuli_exo.targets) is a frozen NEA snapshot; no network at runtime.The caveats live in the data:
T_clampedinmeta["atmosphere"]on cold planets,fully_desaturatedin the noise table on bright hosts (which also raises aUserWarning).tables_dir=beats$LAZULI_EXO_TABLESbeats the packaged default.
That covers the showcase tables. Notebooks 6 to 9 cover the parametric model: any planet from a dozen numbers, with the noise computed live.
